Y Strainers

Detailed Product Description

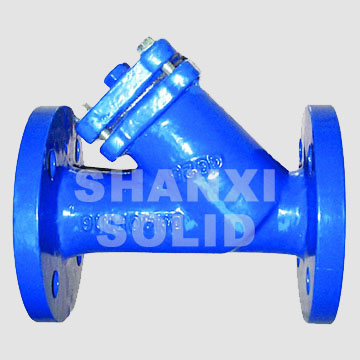

The Strainers carry out superficial sieving of the water , retaining those particles that are bigger than the screen holes . We have at your disposal Strainers in ¡°Y¡± shape . Regarding their installation , the Strainers can be either equiped with flanges fitted on their ends or with internal threads .
Features:
1£© Body material : Ductile iron GGG500-7 or Cast Iron GG20
2)  Cover : Ductile iron GGG500-7 or Cast Iron GG20
3)  Screen : Stainless Steel
4)  Gasket : Synthetic Fiber ( Asbestos Free)
5)  Plug : Ductile iron GGG500-7 or Cast Iron GG20
6)  Bolt : Carbon Steel or Stainless Steel

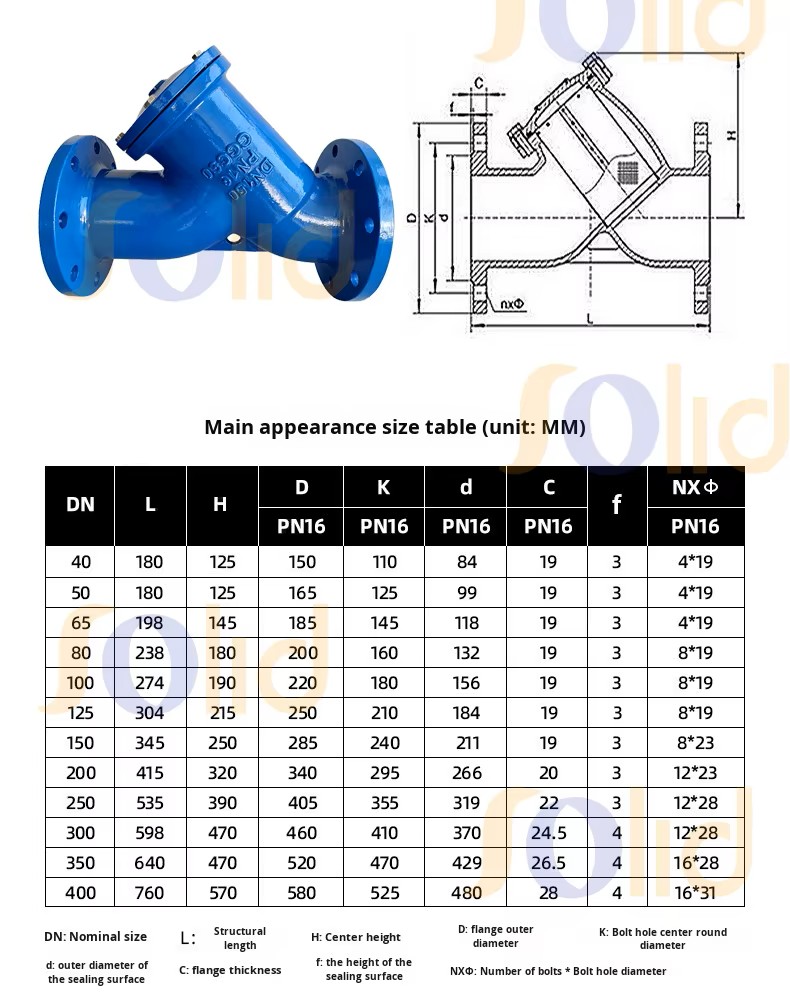

7)  Size: DN50 - DN300
8)  Standard: DIN3202 F1, ANSI CLASS 125, BS4504 PN16
9)  Suitable media: water, oil and gas
10) Body coating : Fusion bonded epoxy coating or Bitumen coating at customers¡¯ request .
11) Package : Wooden cases .
